Ip65 54x3w Led Par is as one of the classic LED outdoor waterproof urban lighting fixtures, the housing case uses a die-cast aluminum water drain case, and the waterproof rate is IP65.Of course, if you have higher requirements for the waterproof rate, such as IP66 or IP67, or even IP68, this is also satisfactory. At present, the waterproof technology of lights and lanterns on the market is mainly divided into two directions: structural waterproofing and material waterproofing.
The so-called structural waterproofing means that after the various structural components of the product are combined, they already have the waterproof function,The waterproof material is the place where the potting glue is reserved to seal the electrical components during product design, and the glue material is used to achieve the waterproof effect during assembly. And our product is a combination of the two, coupled with ICON's waterproof technology, so as to achieve an efficient waterproof effect.
|
Technical parameter：
-
Voltage:100~240 V, 50/60 Hz
-
LED Source:54 x3 W RGBW LEDs, 50,000 hours
-
Beam Angle:25°
-
Control Channels:DMX: 3CH, 4CH, 5CH , 9CH
-
Stand Alone Color Mixing
-
Color Temperature Presets: 3,200~10,000 K
-
Built-in Automated Programs
-
Customizable Programs;Recall Custom Programs
-

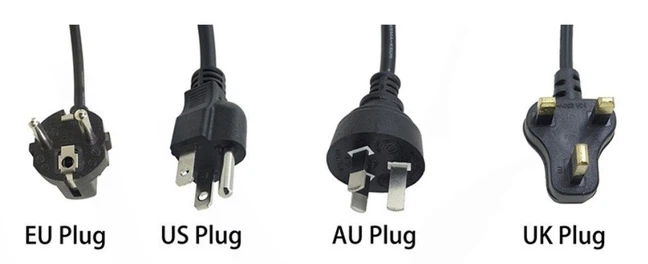

Power Connection:Edison to proprietary IP66 input power cord
-
Control Connection:DMX to proprietary IP66 input cable
-
Cabling:16.4 ft (5 m) signal extension, 16.4 ft (5 m) power extension
-
Protection rating:Ip65
-
Housing case:Die cast aluminum body
-
Packing size:255 x 360 x 316mm
-
Weight:9.5kg 70*62*35CM(4PCS/CTN)G.W:35KG
-
Application: It is available for small to medium live concerts, TV studios,
-
road shows, mobile DJ, clubs.
-
Packing list for each unit:
-
1pcs led par light
-
1pcs manual book
-
If you need more extended power or DMX cable, please contact us firstly.
