Waterproof Oudoor strobe Light

Waterproof Oudoor strobe Light

✅️504×0.2W RGB LEDs + 84×2W cool-white LEDs deliver vibrant color effects and powerful white strobe output

✅️16-section independent zoning with 8 RGB zones and 8 white zones for dynamic lighting effects

✅️Up to 20Hz strobe speed, 8–16bit dimming and 185° tilt for versatile lighting control

✅️IP65-rated die-cast aluminum housing with temperature-controlled cooling and overheat protection for reliable outdoor operation
Share to
Send Inquiry
Description
Technical Parameters

Description





Make a bold visual statement with this 426W Waterproof Outdoor Strobe Light, combining 504 RGB LEDs and 84 high-power cool-white LEDs across 16 individually controlled zones. Its eight RGB and eight white segments create layered colour patterns and powerful white flashes, delivering versatile effects for concerts, festivals, stages and outdoor events.



With 8–16-bit dimming resolution, smooth brightness adjustment and strobe speeds up to 20Hz, the fixture offers precise control over dynamic lighting effects. A 185° tilt range expands positioning possibilities, while built-in LED macro effects provide additional creative options. DMX512 supports five channel configurations from 7CH to 44CH, alongside sound-active, auto-run and master/slave modes.



The exclusive die-cast aluminium housing carries an IP65 rating and features temperature-controlled cooling with overheat protection. Four-sided barndoors shape the output, while the magnetic diffuser/filter plate allows quick, tool-free installation. An LCD or OLED touchscreen, dual-side handles and lockable foot brackets further enhance operation and handling. Designed for demanding indoor and outdoor productions.



Specifications



Photometric values

Light Source

504 × 0.2W 5050 RGB LEDs + 84 × 2W 3535 Cool-White LEDs

Colors

LED Type

5050 RGB LEDs + 3535 Cool-White LEDs

Colors

RGB + Cool White

Colors mixing

8 RGB zones and 8 white zones (16 sections segment)

Effects

Built-in Programs

Auto run, built-in LED macro color effects

Electronic Dimming

8 to 16bit, 0-100% electronic dimming

DMX Functions

Strobe (Max strobe speed: 20Hz)

Control

Control Modes

DMX512, voice control, auto run, master and slave mode

DMX Channels

7 / 14 / 16 / 42 / 44CH

Display

LCD or OLED touch display

DMX Connectors

PG 3-pin DMX In/Out ports

Mains operation

Voltage

100-240V AC, 50-60Hz

Power Consumption

426W

Power Connectors

PG 3-pin Power In/Out ports

Environmental

Protection Rating

IP65

Operating Temperature

-30℃ to 50℃

Housing

Housing Material

Die-cast black aluminium

Colors

Black;White

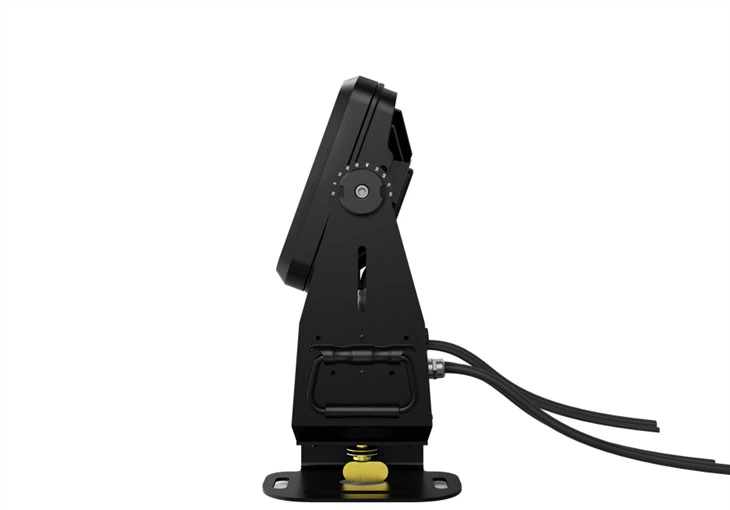

Tilt

Tilt Manual Adjustment

185°

Cooling

Cooling system

Temperature-controlled cooling with overheat protection

Dimensions & Weight

Product Dimensions (L x W x H)

50.3 × 17.3 × 35.8 cm (including holder)

Net Weight

9.8 kg

Gross Weight

10.5 kg

Other properties

Accessories

4-side barndoor, magnetic diffuser/filter plate, omega-bracket, handles and lock-type foot brackets on both sides

Customization

Optional Frosted Glass for a Diffused / Frosted Lighting Effect
