9x15W Color Changing LED Wall Washer

9x15W Color Changing LED Wall Washer

✅️9×15W RGBWA+UV 6-in-1 LED pixel light sources deliver rich, vibrant color effects
✅️Individual pixel control with built-in color macros, color temperature correction and dynamic lighting programs
✅️Selectable beam angles: 15°, 25°, 45° or 60°
✅️50,000-hour LED lifespan with efficient heat-pipe cooling
✅️IP65-rated die-cast aluminum housing with waterproof SeeTronic power connectors for reliable outdoor use
✅️Manually adjustable tilt from 0° to 170° for flexible light positioning
Share to
Send Inquiry
Description
Technical Parameters

Description

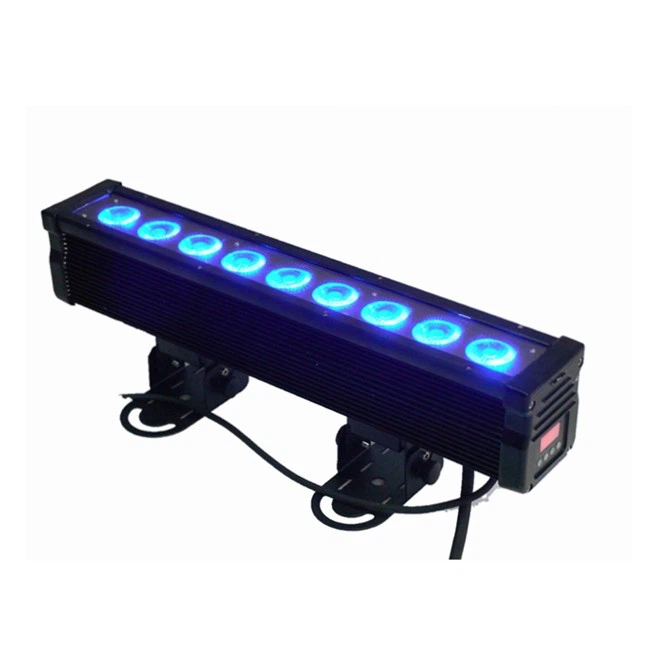

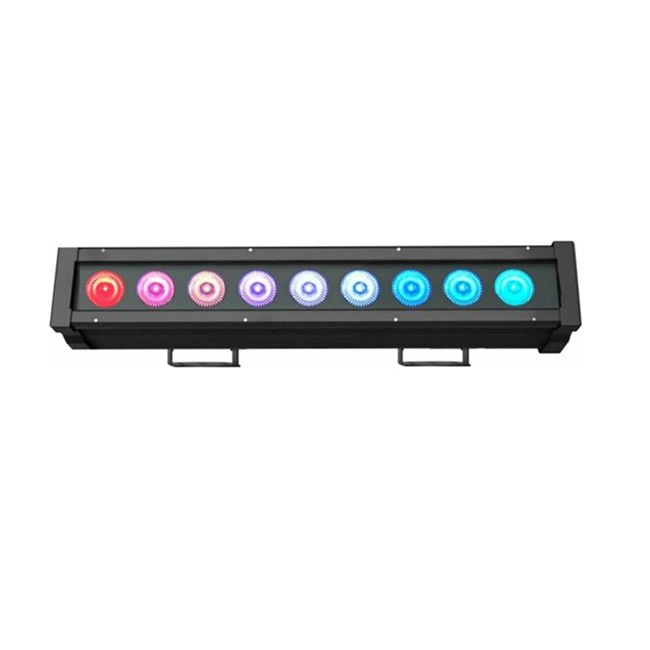

Bring versatile colour and pixel effects to outdoor lighting designs with the ICON-B004D Outdoor LED Wall Washer Bar. Equipped with nine 15W RGBWA+UV 6-in-1 LEDs, this 150W fixture combines rich colour mixing with individual pixel control, giving lighting designers more creative freedom to produce dynamic patterns, colour transitions and UV-enhanced effects.


Four optional beam angles-15°, 25°, 45° and 60°-make it adaptable to different projection and coverage requirements, from focused accents to broader wall illumination. Its lighting functions include strobe, dimming, static colours, colour macros and colour temperature correction, with automatic and sound-activated programmes for standalone operation. DMX512, master/slave and auto modes, together with 6CH and 9CH configurations, provide flexible control options.

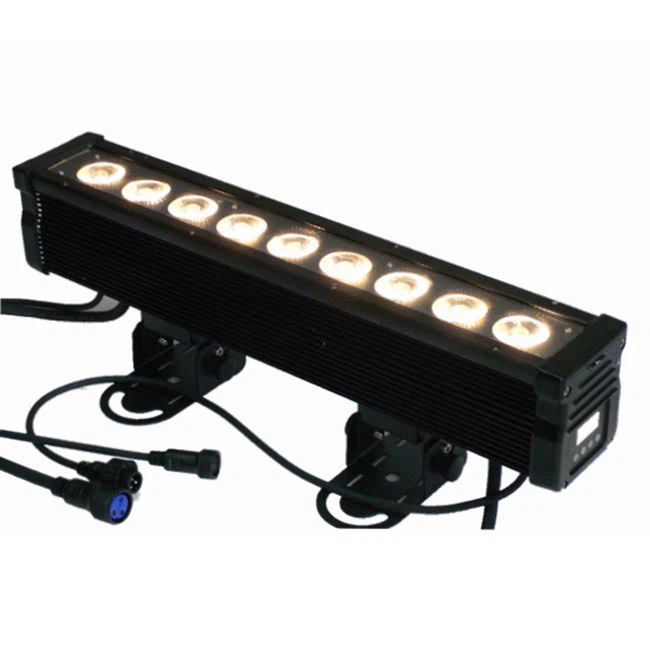

Built for demanding outdoor environments, the fixture features a black die-cast aluminium housing with IP65 protection and heat-pipe cooling. SeeTronic IP65-rated power input and output connections support practical installation, while the manually adjustable 0°–170° tilt allows precise positioning. With an LCD display and an operating temperature range of -30°C to 50°C, the ICON-B004D is well suited to outdoor stages, architectural accents and event lighting installations.



Specifications



Photometric Values

Light Source

9 × 15W LEDs
LED Life 50,000 Hours
Beam angle 15° / 25° / 45° / 60° (optional)

Colors

LED Type RGBWA+UV 6in1
Colors Red, Green, Blue, White, Amber + UV
Colors mixing Yes
Color temperature correction Yes

Effects

Built-in Programs Auto program, sound programs, static color, color macro
Electronic Dimming Yes
DMX Functions Strobe, dimmer, static color, color macro, color temperature correction, auto program, sound programs

Control

Control Modes DMX512, auto program, sound program, master/slave mode
DMX Channels 6 / 9 CH
Display LCD screen
DMX Connectors Selectable 3-Pin Connector XLR

Mains Operation

Voltage AC 100-240V, 50/60Hz
Power Consumption 150W
Power Connectors SeeTronic IP65 PG cable (Power Input / Power Output)

Environmental

Protection Rating IP65
Operating Temperature -30°C to 50°C

Housing

Housing Material Die-cast aluminium
Colors Black

Tilt

Tilt Manual Adjustment 0° to 170°

Cooling

Cooling system Heat Pipe

Dimensions & Weight

Product Dimensions (L x W x H) 54 cm × 9.5 cm × 17 cm
Net Weight 6.5 kg
Gross Weight 7 kg
