Stage led bar

Stage led bar

✅️840x0.2W RGB 5050 LEDs deliver high-density and vibrant pixel effects.

✅️Advanced multi-mode strobe effects reach up to 25Hz for dynamic shows.

✅️IP20-rated aluminum alloy housing designed specifically for reliable indoor use.

✅️Supports RDM and multi-channel DMX for precise individual pixel control.

✅️Fan-forced cooling system ensures stable operation during extended use.

✅️Equipped with secure Powercon and 3-pin XLR connectors for easy linking.
Share to
Send Inquiry
Description
Technical Parameters

Description

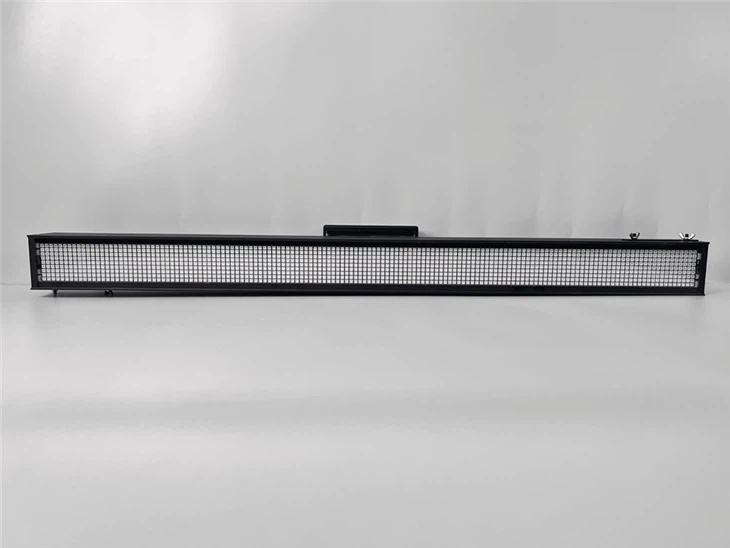

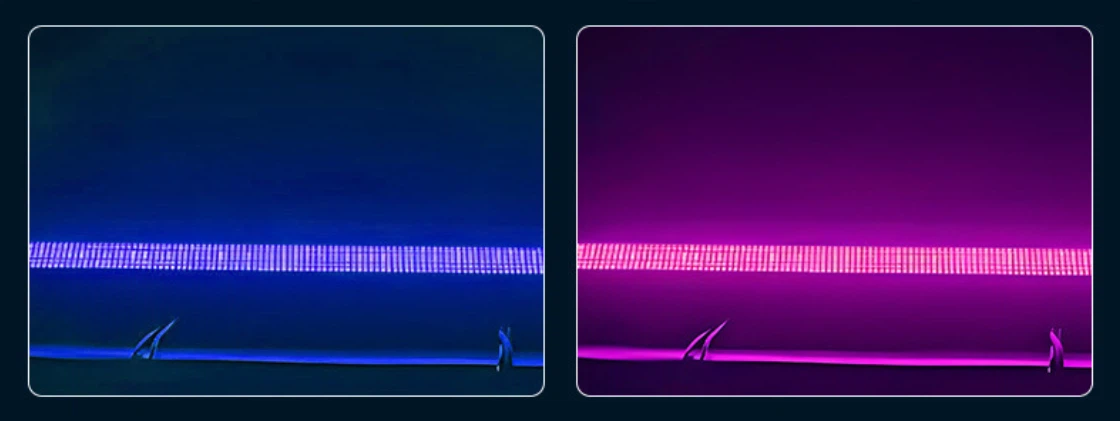

Unveiling unparalleled visual resolution, this 170W linear LED bar integrates an extraordinary matrix of 840×0.2W 5050 RGB LEDs. This ultra-high-density configuration creates stunningly smooth, seamless color mixing and intricate pixel-mapping effects, making it ideally suited for captivating visual displays in immersive indoor environments.



Engineered for advanced connectivity, the luminaire supports RDM and extensive DMX-512 channel configurations (8/11/36/41CH) alongside auto-run, sound-active, and master-slave modes. Lighting professionals can precisely execute a versatile range of strobe effects-including conventional, self-propelled, and pulse strobes from 1 to 25Hz-to elevate any performance.

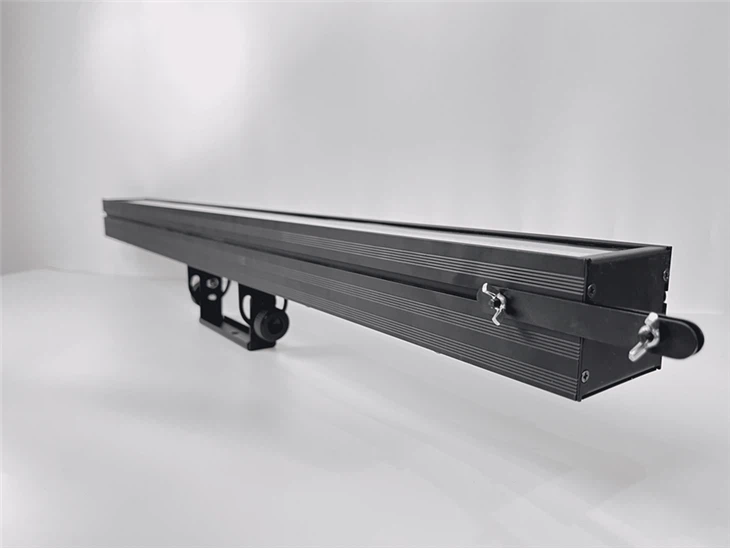

Housed in a robust aluminum alloy chassis, the fixture utilizes a reliable forced-air cooling system to maintain optimal thermal stability during extended use. It incorporates professional PowerCON in/out and 3-pin XLR connectors for secure, hassle-free daisy-chaining. Weighing just 4 kg, this highly portable and feature-rich bar delivers exceptional visual fidelity for clubs, studios, and demanding indoor events.



Specifications



Photometric values

Light Source

840 × 0.2W 5050 RGB LEDs

Colors

LED Type

0.2W 5050 LED

Colors

Red, Green, Blue

Colors mixing

Yes

Effects

Built-in Programs

Self-propelled

Electronic Dimming

N/A

Memory Function

N/A

DMX Functions

Strobe (1-25Hz conventional strobe, self-propelled strobe, pulse strobe)

Control

Control Modes

RDM, DMX-512 signal control, Sound control, Self-propelled, Master-slave mode

DMX Channels

8 / 11 / 36 / 41 CH

Display

N/A

DMX Connectors

3-pin XLR In/Out

Mains operation

Voltage

AC110V-240V, 50-60Hz

Power Consumption

170W

Power Connectors

powerCON In/Out

Environmental

Indoor / Outdoor use

Indoor use

Housing

Housing Material

Aluminum alloy

Colors

Black

Cooling

Cooling system

Fan forced cooling system

Dimensions & Weight

Gross Weight

4 kg
