Moving Led Bar

Moving Led Bar

✅️6x60W RGBW main LEDs combined with a 324-piece RGB background ring.

✅️Ultra-tight 3° beam angle creates sharp and laser-like aerial beams.

✅️Supports RDM and up to 63 channels for precise individual pixel control.

✅️Smooth 540° pan and 270° tilt movements for wide and dynamic coverage.

✅️0-100% linear dimming with adjustable 0-25Hz high-speed strobe effects.
Share to
Send Inquiry
Description
Technical Parameters

Description

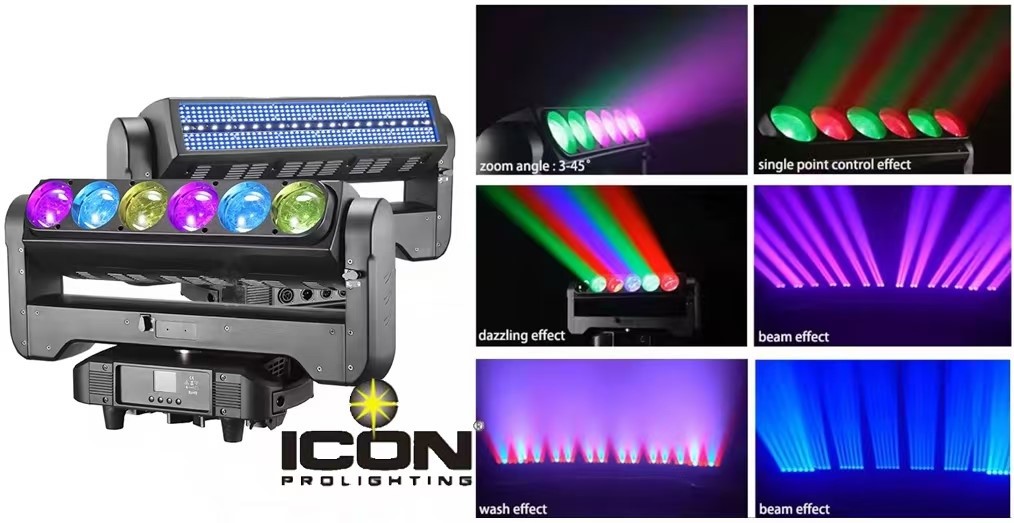

Blending a razor-sharp 3° core with an expansive pixelated canvas, this 380W hybrid moving head incorporates six 60W RGBW 4-in-1 LEDs supported by a dense matrix of 324x0.2W RGB 3-in-1 LEDs. This dual-layer design allows the fixture to project piercing beams while generating stunning, intricate pixel-mapping effects across the background.



Engineered for advanced visual control, it offers extensive channel configurations up to 63CH. Operators can seamlessly manage DMX, RDM, Master/Slave, Sound-Active, and Standalone modes via the intuitive LCD display. Furthermore, a 0-100% linear dimmer and 0-25Hz adjustable strobe ensure precise output management and dynamic rhythmic impact.



Built with high-temperature resistant, flame-retardant engineering plastic, the unit guarantees reliable indoor performance. It executes smooth 540° pan and 270° tilt movements, supported by a low-noise fan cooling system for optimal thermal stability. Equipped with secure PowerCON and 3-pin XLR connectors, this remarkably portable 9.5 kg luminaire stands as a premier, dependable solution for demanding club installations and live performances.



Specifications



Photometric values

Light Source

6 × 60W RGBW 4-in-1 LEDs + 324 × 0.2W RGB 3-in-1 LEDs

Beam angle

3°

Colors

LED Type

60W 4-in-1 LED + 0.2W RGB 3-in-1 LED

Colors

Red, Green, Blue, White

Colors mixing

Yes

Effects

Built-in Programs

Standalone

Electronic Dimming

0-100% linear dimming

DMX Functions

Strobe (0-25 times/second adjustable)

Control

Control Modes

DMX, RDM, Master/slave, Sound active, Standalone

DMX Channels

23 / 28 / 63 CH

Display

LCD Display

DMX Connectors

XLR 3-pin In/Out

Mains operation

Voltage

AC90-240V, 50/60Hz

Power Consumption

380W

Power Connectors

powerCON In/Out

Environmental

Operating Temperature

-20°C ~ 45°C

Housing

Housing Material

High temperature resistant flame retardant engineering plastic

Colors

Black

Movement

Pan

540°

Tilt

270°

Cooling

Cooling system

Low noise Fan

Dimensions & Weight

Net Weight

9.5 kg

Gross Weight

10.5 kg
