Moving Head Stage Lights

Moving Head Stage Lights

✅️Original 380W OSRAM lamp delivers 212,000 lumens at 10 meters.

✅️Versatile 2° to 38° beam angle delivers sharp and dynamic aerial effects.

✅️Six independent rotating prisms create stunning and complex visual effects.

✅️Features 14 colors, 14 fixed gobos, and 8 rotating glass gobos.
Share to
Send Inquiry
Description
Technical Parameters

Description

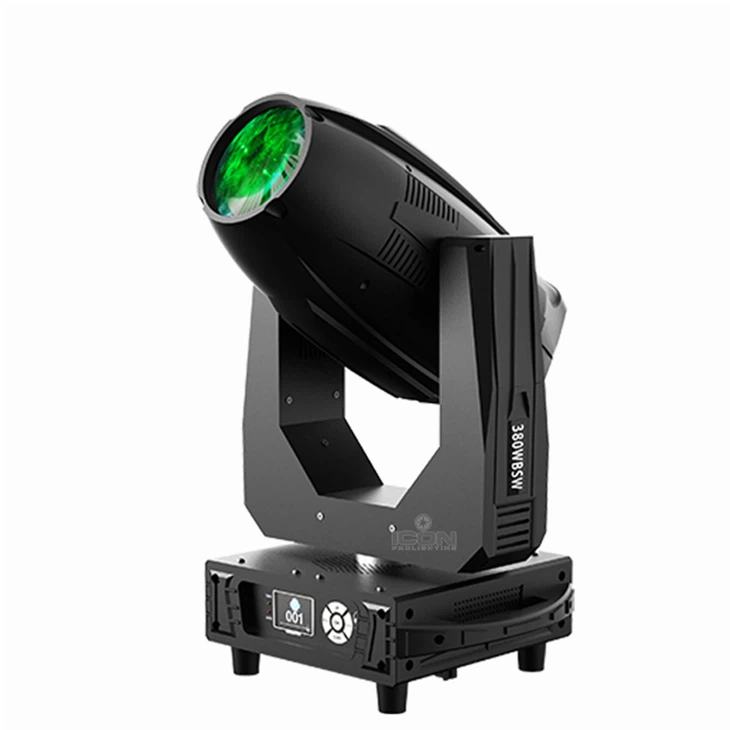

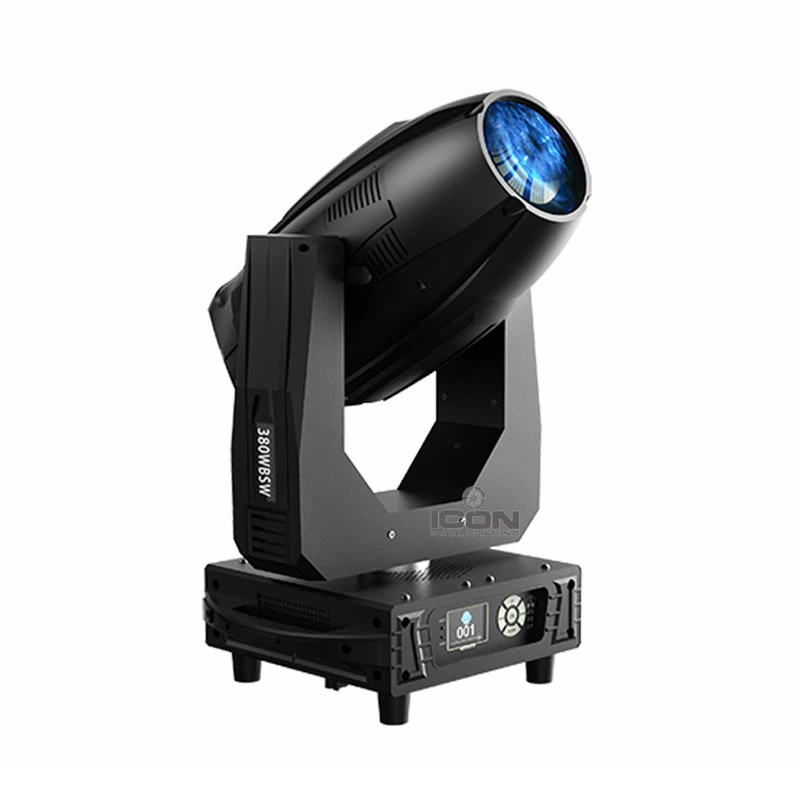

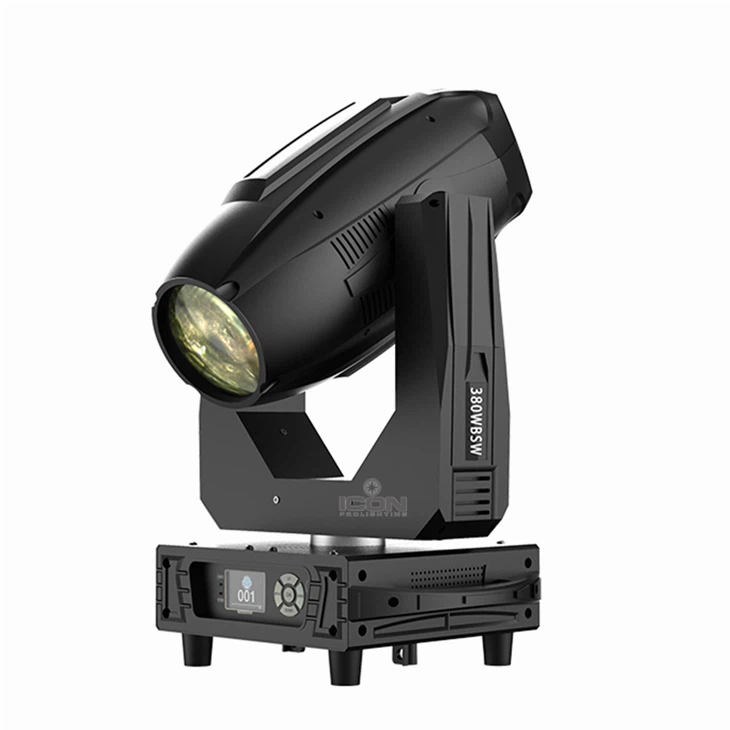

Pushing the boundaries of optical engineering, this 600W hybrid moving head harnesses an original 380W OSRAM lamp to project an astounding 212,000 lumens at 10 meters. Featuring a versatile 2° to 38° beam angle and high-precision multi-layer coated lenses, it guarantees razor-sharp projections and flawless washes without light leakage.



The comprehensive effects engine is highlighted by a spectacular six-prism independent rotation system (offering 6, 8, 24, 32, and 48-facet options), creating breathtaking multi-layered aerial displays. Complemented by 14 fixed gobos, 8 rotating glass gobos, and a dual-strobe structure, it delivers ultimate visual impact.



Driven by three-phase stepping motors, the unit achieves incredibly fast and silent movements, completing a 540° pan in just 2.0 seconds. A massive 16-million-pixel LCD touchscreen provides highly intuitive, bilingual control. Encased in a high-strength alloy core with a high-temperature-resistant shell, this 21 kg luminaire incorporates automatic positioning correction, making it a premier workhorse for demanding professional stages.

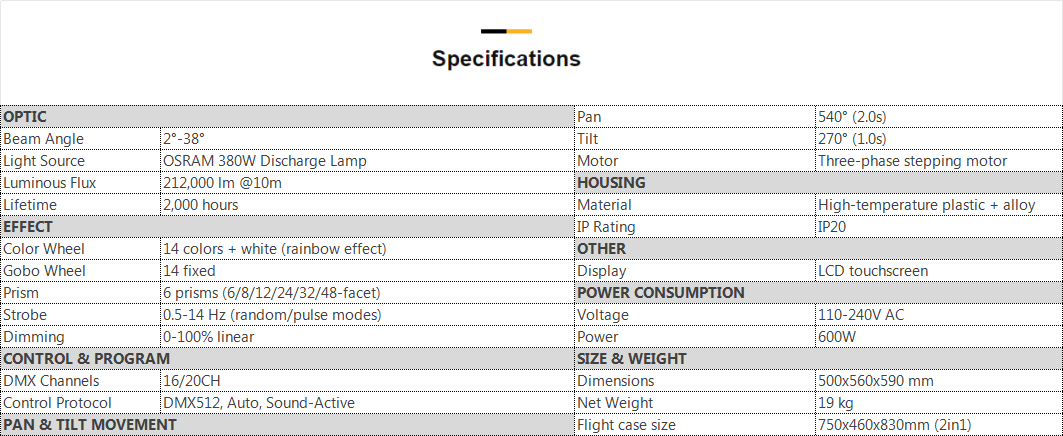

Specifications



Photometric values

Light Source

OSRAM 380W Lamp

LED Life

2,000 hours (Average)

Beam angle

2° - 38°

Focus

0~100% linear smooth focusing

Illuminance

212,000 LUX @ 10m

Colors

LED Type

OSRAM Lamp

Colors

White (Base color)

Color Wheel

14 Colors + White (Half-color effect), Two-way rotation, Rainbow effect, Adjustable speed

Colors mixing

Yes

Effects

Built-in Programs

Self-propelled mode, Random mode, Voice control

Electronic Dimming

0-100% linear free dimming

Memory Function

Yes (Automatically correct positioning function)

DMX Functions

Strobe (Double strobe structure design, 0.5-14 times per second adjustable, random strobe, pulse strobe)

Static Gobo Wheel

14 Fixed delicate gobos + White (Pattern jitter effect)

Rotate Gobo Wheel

8 Glass Gobos + White light (Two-way rotating picture effect, adjustable speed)

Prism

6 Independent rotation prisms (6 prisms, 8 prism, 24 prism, 32 prism, 48 prism)

Control

Control Modes

International standard DMX 512, Random mode, Voice control, Self-propelled mode

DMX Channels

19 / 23 CH

Display

16 million pixel LCD touch screen (Display upright/upside down, switch between Chinese and English)

Mains operation

Voltage

AC90-260V, 50/60Hz

Power Consumption

600W

Housing

Housing Material

High-temperature resistant plastic shell, high-strength alloy cold-pressed core material

Colors

Black

Movement

Pan

540° (2.0 seconds)

Tilt

270° (1.0 second)

Motors

Three-phase stepping motor (faster, more powerful and quieter)

Dimensions & Weight

Net Weight

21 kg

Gross Weight

22 kg
