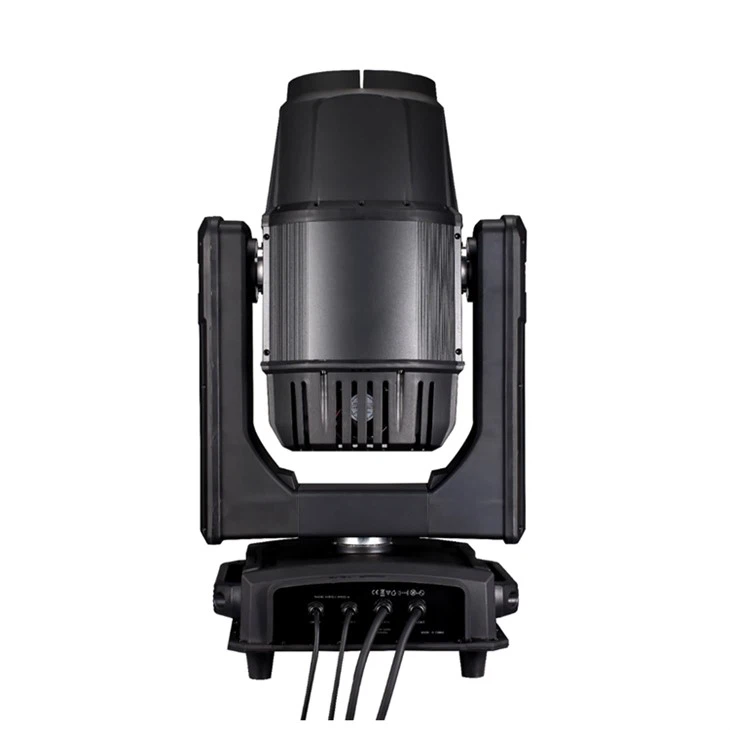

Outdoor Rated 400 LED BSW CMY Moving Head

Outdoor Rated 400 LED BSW CMY Moving Head

✅️400W white LED module delivers 80,000 LUX at 4 meters.

✅️Versatile 4° to 35° zoom angle for precise beam shaping.

✅️IP65-rated waterproof housing ensures reliable outdoor performance.

✅️Independent CMY+CTO mixing with 7 independently rotating glass gobos.

✅️16-bit 540° pan and 270° tilt with intelligent photoelectric reset.
Share to
Send Inquiry
Description
Technical Parameters

Description





Boasting an extraordinary 80,000 LUX at 4 meters, this 500W outdoor moving head is powered by a robust 400W white LED module. Featuring a versatile 4°-35° zoom and an extensive 4 to 50-meter linear focusing range, it ensures razor-sharp projections across vast distances. The advanced independent CMY+CTO color system provides seamless color transitions with a 75 CRI at 8000K.



A comprehensive effects engine includes 12 fixed and 7 independently reversible rotating gobos. Visual impact is maximized by a layerable dual prism system (a 3-facet prism plus 6 linear prisms), alongside an independent atomization filter for soft, natural washes. Managed via 22/26CH DMX-512 and RDM protocols, it features an intelligent photoelectric reset system to automatically recover from malfunctions, ensuring uninterrupted shows.



Engineered for extreme outdoor resilience, the IP65-rated die-cast aluminum housing ensures ultimate weatherproofing. It incorporates a CFD-analyzed, low-noise cooling system and automatic overheat power-off protection for absolute stability. Weighing 27 kg, this feature-rich luminaire stands as a premier, touring-grade solution for demanding architectural and stage applications.



Specifications



Photometric values

Light Source

400W White Light LED Module

LED Life

50,000 Hours

Beam angle

4° - 35° (Zoom angle)

Illuminance

80,000 LUX @ 4 meters

Focus

Linear adjustment from 4 meters to 50 meters

CRI (Color Rendering Index)

75



Colors

LED Type

White Light LED Module

Colors

White, Cyan, Magenta, Yellow (Independent CMY+CTO color mixing system)

Colors mixing

Yes

Color Temperature Presets

8000K (CTO Adjustable)

Color Wheel

12 Colors + White Light (Color half-color function)

Effects

Built-in Programs

Auto-run

Electronic Dimming

0-100% linear adjustment

Memory Function

Yes (Intelligent photoelectric reset correction system)

Static Gobo Wheel

12 fixed patterns + white light

Rotate Gobo Wheel

7 glass patterns (Each glass pattern can be independently reversed)

Prism

Standard single 3 Prism + 6 rows of mirrors (Independently reversible and superimposable)

Frost / Atomization

1 Independent atomization effect (Soft and natural light spot)

Control

Control Modes

DMX 512, Auto-run, Master-slave auto-run, RDM

DMX Channels

22 CH / 26 CH

Display

LCD display (Adapts to different installation positions)

Mains operation

Voltage

AC110V-240V, 50-60Hz

Power Consumption

500W

Environmental

Protection Rating

IP65

Safety Devices

Electronic temperature control overheating protection, automatic power-off protection when overheating system fails.

Housing

Housing Material

Die-casting aluminum and fire-resistant engineering plastic

Colors

Black

Movement

Tilt

270°

Pan

540°

Movement Resolution

16 bit

Cooling

Cooling system

CFD software analyzed low-noise heat dissipation system (Extremely low fan noise)

Dimensions & Weight

Product Dimensions (LxWxH)

424 × 367 × 725 mm

Net Weight

27 kg

Gross Weight

33.28 kg
