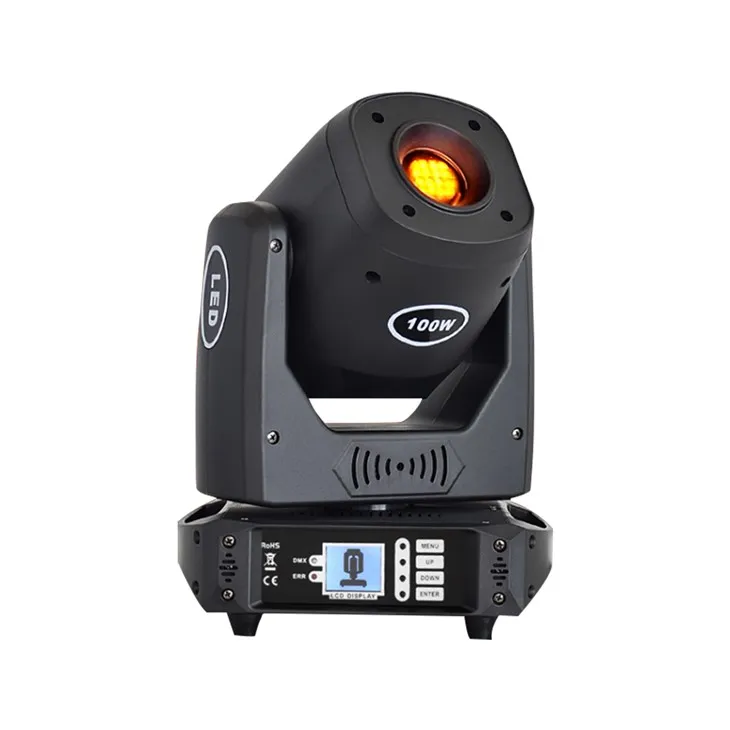

ICONLIGHT® 100W LED Full Color Pattern Light, a versatile lighting fixture designed to bring vibrant and dynamic lighting effects to your events. With its powerful 100W LED white light, this light produces intense illumination for an impactful visual experience. Control the moving light with ease through the standard DMX512 protocol with 14 channel which include strobe, color rotation, gobo and prism. Comes with two gobo wheels, including a fixed gobo wheel with 7 patterns plus a white light effect, and a rotating gobo wheel with 6 patterns plus white light effect. Create mesmerizing effects with the gobo flow options, including pattern shaking, forward, and reverse rotation.
The color wheel offers 7 vibrant color filters plus white light, while the rainbow flow effect adds an extra dimension to your lighting design. With the added features of focus and a 3-facet prism effect, you can precisely control the light beam angle to 12 degrees for precise and sharp light projections. Ensure easy and secure connectivity with one input and one output for both signal and power connections. The power connections are color-coded in blue for safety and tight fitting.


Temperature control protection with the fan activating when the temperature reaches 40 degrees, ensuring optimal performance and longevity. Portably light weight 7.5kg making it ideal for mobile use or installation at various venues. Packaged in a single (or 2in1) packaging, ensuring the safe transport and storage of the light. Illuminate your events with the dynamic lighting effects of our 100W gobo spot moving head, providing stunning visuals and enhancing the ambiance of your space.
comparison of product parameters
| Products name | Gobo Spot Moving Head | Power consumption | 120W |
| Products model | ICON-M022 | Number of LEDs | 1 |
| Material | Metal + ABS Plastic | LED type | 100W Osram Lamp |
| Power Supply | Voltage: AC100V-240V/50-60Hz | LED Life Expectancy | 50,000 Hours |
| DMX Mode | 14 CH | Gobo Wheel | 13 + white |
| Beam angle |
12° |
Strobe | 0.3-20 Hz |
| Frost | Fog effect | Illuminance | 81210 LUX@1m 20000 LUX@2m 8484 LUX@3m |
| Prism |
3 facet rotating prisms |
Control Mode | Strobe, dimmer, static color, color macro, color temperature correction, auto program, sound programs Control mode: RDM, DMX512, auto program, sound program, master/slave mode |
| Display | LCD screen | Tilt Manual adjustment | 0° degree to 270° degree unlimited |
| Data Connector | 3 Pin Connector XLR | Pan Manual adjustment | 0° degree to 540° degree unlimited |
| Power Input | Powercon | Cooling | Combination of Heat Pipe and Temperature Controlled Fan |
| Power Output | Powercon | IP Rates | IP20 |
| Product Size | L × W × H (25cm × 18cm × 37cm ) | Operating temperature | -20°C to 40°C |
| Net Weight | 6.5 KG | Gross Weight | 7 KG |
