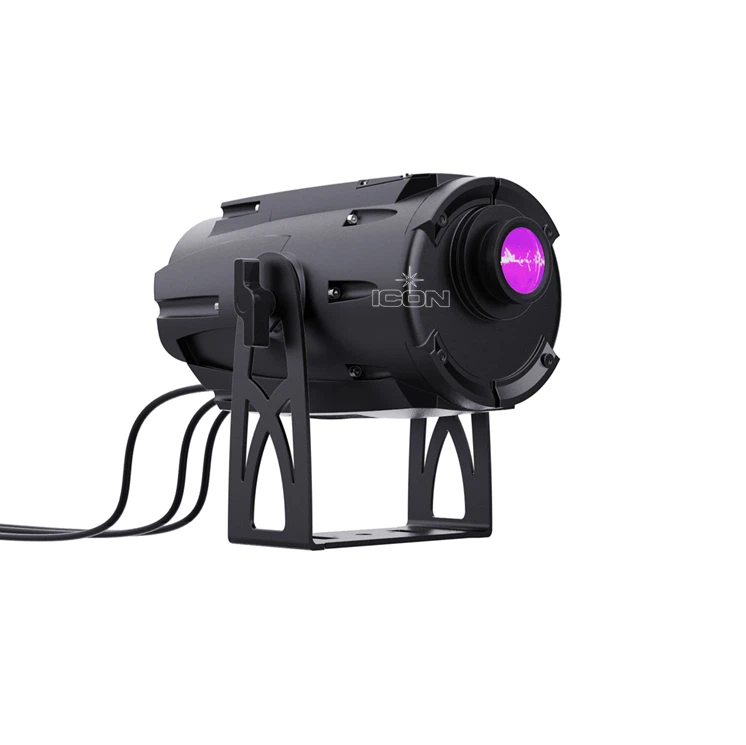

Developed by our R&D team over one month, the newly launched ICON‑S022 Outdoor Gobo Projector is a premium‑grade projection lighting solution tailored for long‑term outdoor application scenarios.
Powered by a high‑performance 150W Osram LED source, this unit delivers crisp, high‑brightness logo projection with adjustable rotation speeds, ideal for branding display on both high‑rise structures and ground‑level spaces. It supports custom gobo patterns, featuring a single gobo wheel pre‑loaded with four interchangeable gobos. Beam angles of 15°, 25°, and 45° are optional to accommodate diverse projection distances and coverage demands. Multiple intelligent control modes including DMX512, auto‑run, and master‑slave operation enable seamless effect adjustment for professional lighting setups.
01
Self Developed

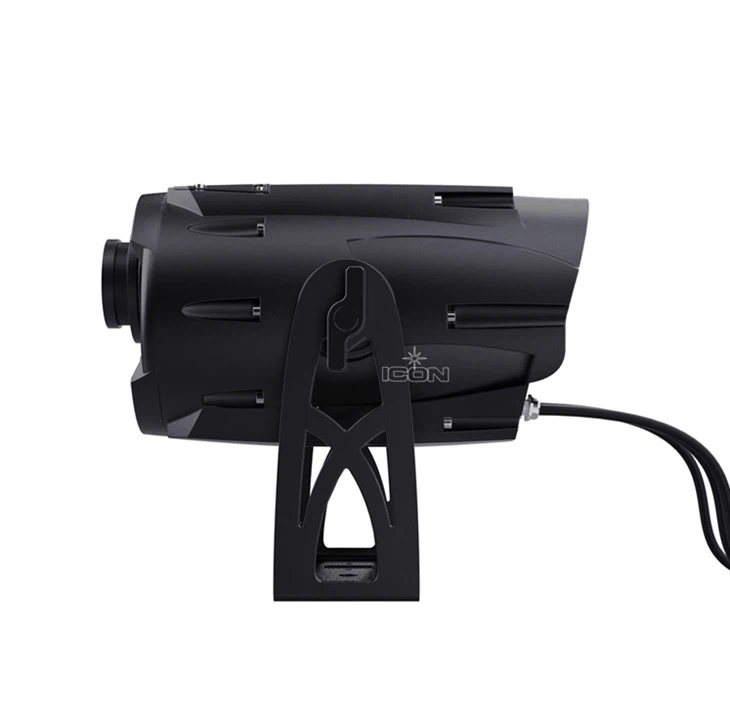

Die-cast aluminum housing integrates handles and omega brackets for easy mounting.
02
Adjustable Panels
Sliding LED arrays enable vertical beam alignment, preserving a clean industrial design.
03
IP65 Rated
IP65-rated against dust/water, with anti-fogging glass to ensure clarity in harsh conditions.
04
Intelligent Control
DMX512 and 51-channel control. Temperature-regulated cooling and internal PCB wiring boost reliability.
Specification
| Product type | Outdoor Gobo light | AC voltage | 100-240V AC/50-60HZ |
| Power | 150W | LED | 150W OSRAM LED White |
| Gobo Wheel | 4pcs independent GOBOs , rotation with adjustable speed |
Resolution | 8-16 Bit |
| Control channel | 6CH | Protocol | DMX512, AUTO RUN, Master/Slave |
| Cooling | Cooling system:Fan wind cooling | Dimmer | 0-100% electronic |
| Internal Effects | LED Macro Effects, Program effect 25types | Shutter | electronic, max.20 Hz |

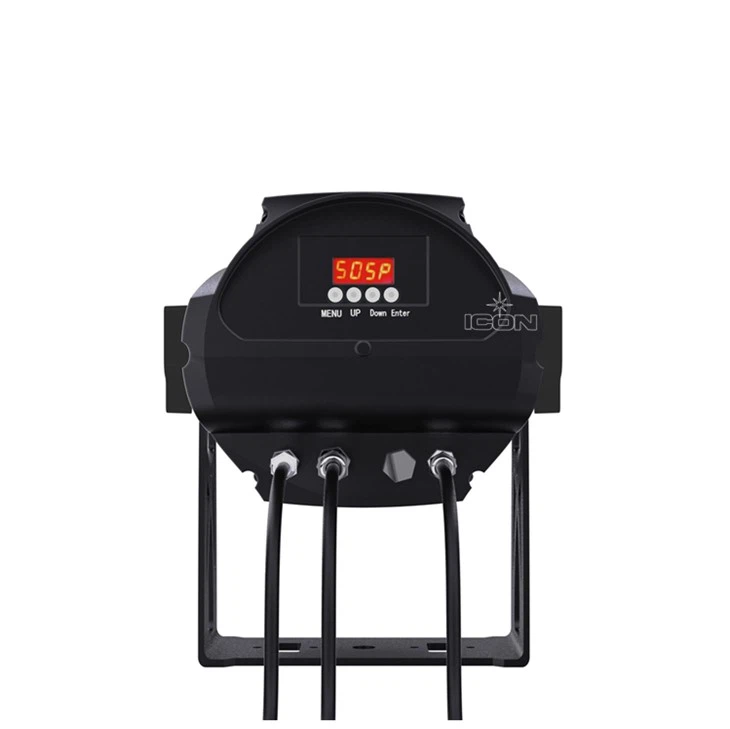

| Display(1) | LCD Screen | IP 65 DMX In/Out | IP65 PG connector |
| Display(2) | The screen settings include screen off, screen always on, screenflip | IP 65 Power in/out | IP65 PG connector |
| Focus | Manual Electronic positioning function | Housing material | Die-cast aluminium black |
| Protection | Light source overheat protection and intelligent offline control mode | Maximum ambient temperature | -30°C, 50℃ |
| Waterproof lP rate | IP65 | Net weight | 6.4 K.G |
| Product size | 440x290x260mm | Special customization | Gobo Slide Extra Charge Fees |
Feature
Boasting exceptional optical clarity and robust durability, this gobo projector ensures vivid branding visibility in all outdoor conditions. Built with a 360° seamless IP‑rated waterproof structure, it is corrosion‑resistant and stable against extreme high/low temperatures, heavy rain and harsh weather, delivering consistent performance year‑round.

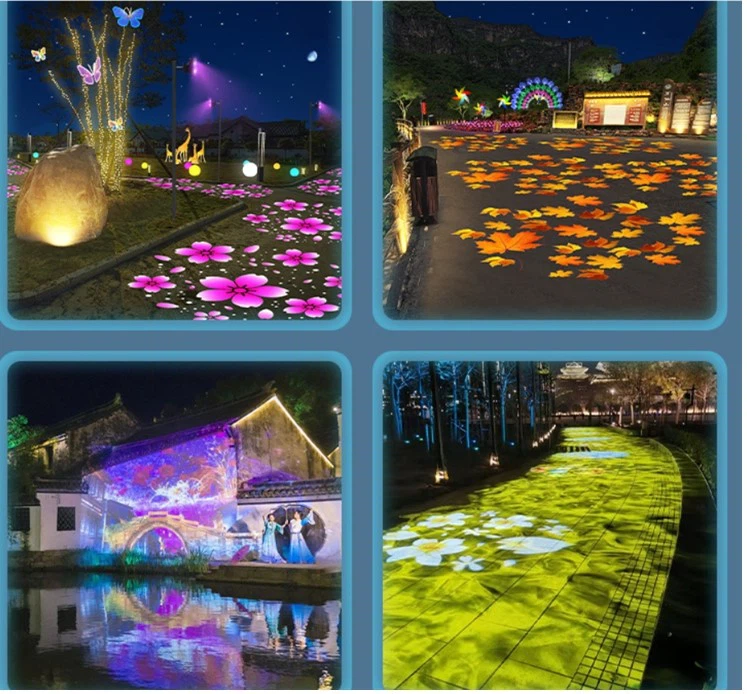

Compared with mainstream 200W outdoor gobo projectors on the market, the ICON‑S022 stands out comprehensively. Its sleek, refined exterior design complements various architectural and event environments. Weighing merely 6.4kg, it greatly cuts logistics costs while enabling rapid installation and easy maintenance for users. Coupled with competitive pricing and superior cost‑performance, it serves as the optimal choice for logo projection in concerts, festivals, parks, sidewalks, building facades and more commercial & outdoor scenarios.
4‑gobo wheel design supports quick switching of custom logos, event slogans and festival patterns with adjustable rotation speed for dynamic visual effects.
DMX512 intelligent control system enables linkage with professional stage lighting systems, ideal for concerts, events and large‑scale outdoor projects.
Engineered for large‑scale outdoor lighting projects, the ICON‑S022 delivers stable performance and superior cost‑effectiveness. Its universal voltage, multi‑angle installation and synchronized control system perfectly meet commercial plaza, scenic area and real‑estate project demands. With strict quality inspection and customizable gobo service, it is a trusted bulk‑order solution for global distributors and contractors
